Accelerometers

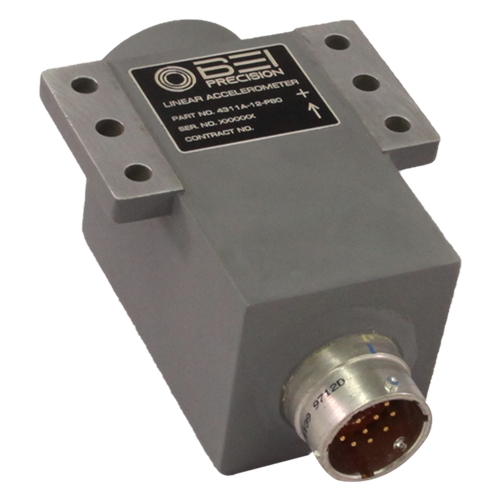

4311A Family

Product Specifications

General Parameters
Type	Linear Accelerometers
Operating Principle	Closed-loop servo force balance
Size and Mounting	Per BEI PSSC drawing 38731
Weight	0.5 lbs max
Input Power	± 15 VDC ± 0.3 VDC
Electrical Connection	Per MIL-C-83723, Series 3
Sealing	Hermetically sealed
Range	± 3 g
Scale Factor	1.667 ± 0.033 V/g
Scale Factor vs. Temperature	< 0.01% per /F
Accuracy	± 0.1 g
Sensitivity	0.01 g
Noise	< 6.0 mV rms
External Load	Calibrated with external 1 Megohm load (not supplied)
Dynamic Characteristics	Output amplitude ± 0.5%, 0 to 1 Hz
Alignment	< 1.0/ Case to true-sensitive axis
Self Test	Provision is included for external applications of torquing current to torque at a scaling of 609 ± 18 microamps/g
Operating Temperature	-40/F to +160 /F
Storage Temperature	-65/F to +200/F
Shock Endurance	15 g, any axis
Acceleration Endurance	15 g, any axis
