Optical Encoders

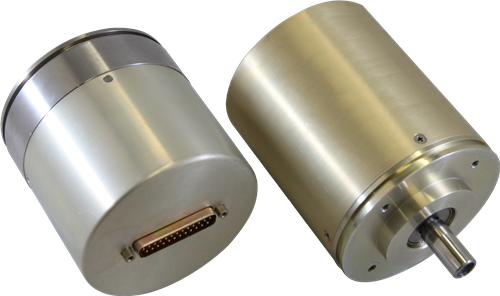

INC35 & BIC35

Product Specifications

General Parameters
Type	Incremental Housed Encoders
Operating Temperature Range	0°C to 71°C
Storage Temperature Range	‐40°C to 85°C
Input Power	5.0 VDC ± 5% @ 225 mA
Vibration	5 to 500 Hz @ 20 g’s
Shock	30 g’s for 11 ms duration
Slew Speed (Non-Operating)	3000 rpm
Torque - Breakaway Running	0.5 oz‐in max
Moment of Inertia	0.6 oz‐in2 maximum
Shaft Loading - Axial Radial	5.0 lbs max
MTBF	100, 000 Hrs min
