Optical Encoders

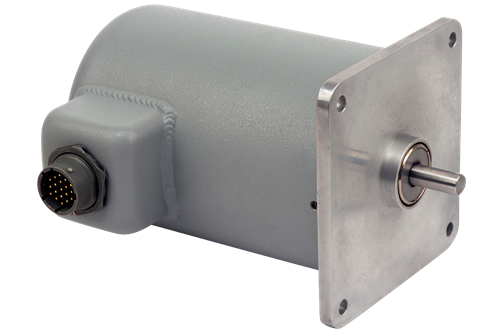

MT40 Series

Product Specifications

General Parameters
Type	Absolute Multi-Turn Encoders
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-65°C to +125°C
Input Voltage	5 VDC ±5%
Shock	50g, for 11 msec
Slew Speed (Non-Operating)	5000 rpm
Rated Life, Bearings	2 x 108 revolutions, 5 x 1010 revolutions
Weight	3 to 5 lb
Resolution - ENOB	11 Bits
