Optical Encoders

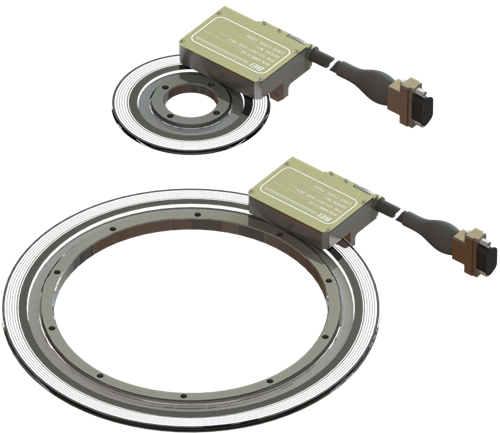

nanoSeries® AIME-II

Product Specifications

General Parameters
Type	Absolute Kit Encoders
Interrogation Rate/Acquisition Time	16 kHz max / data Acquisition Time 47 µSec typ
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-55°C to +90°C
Input Power	+5VDC ± 5% at 1.2 watts
Input Voltage	5 VDC
Vibration	20.7 grms from 10 to 2000 Hz per MIL-STD-202, Method 214, Cond. B
Shock	50g at 11ms half-sine pulse per MIL-STD-202, Method 213B, Test Condition A
Slew Speed (Non-Operating)	3600 rpm max
Altitude	To 70, 000 feet (21, 335 meters)
Relative Humidity	To 99% (avoid condensation)
Rated Life, LED	100, 000 hours min.
