Optical Encoders

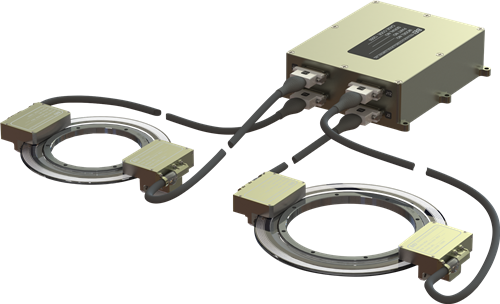

nanoSeries® ARA

Product Specifications

General Parameters
Type	Absolute Kit Encoders
Interrogation Rate/Acquisition Time	8 kHz max./64 µsec typ. Acquisition
Operating Temperature Range	-40°C to +73°C (Derated per EEE-INST-002)
Storage Temperature Range	-55°C to +90°C
Input Voltage	5 VDC ± 5%
Vibration	20.7 grms from 10 to 2000 Hz per MIL-STD-202, Method 214, Cond. B
System Power (1 readhead, non-redundant)	4.5 Watts max. @ 5 VDC
Readhead Power Dissipation	0.73 Watts max.
EEE Parts Rating	EEE-INST-002 Level 1 or 2, or Engineering Protoype Level
Communications	ISS(3) over LVDS per TIA/EIA-644
Radiation Tolerance	100 krad (Si) Total Ionizing Dose
