Optical Encoders

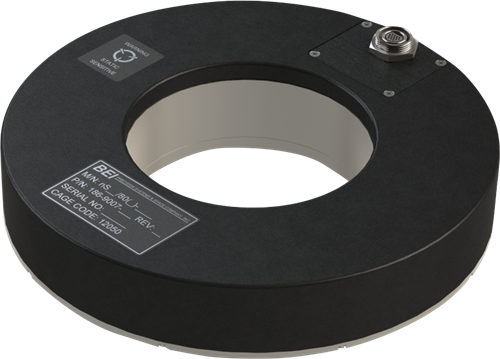

nanoSeries® Housed Size 80

Product Specifications

General Parameters
Type	Absolute Housed Encoders
Interrogation Rate/Acquisition Time	8.0 kHz max
Operating Temperature Range	-40 to +75°C
Storage Temperature Range	-55 to +90° C
Input Voltage	5.0 ±10% VDC
Vibration	MIL-STD-202, Method 214, Condition 1, Profile F (20.7 grms), MIL-STD-202, Method 214, Condition 1, Profile A (5.35 grms)
Shock	MIL-STD-202, Method 213B, Condition A (50 g’s, 11 msec pulse, half-sine)
Slew Speed (Non-Operating)	200 RPM max
Operating Speed	5 RPS max(1) 30 RPM with Tachometer option
Altitude	70, 000 ft
Rated Life, LED	100, 000 hours min.
Rated Life, Bearings	109 revolutions min.
Torque - Breakaway Running	15.0 oz-in max @ 25°C
Moment of Inertia	0.84 oz-in-sec2 max (excluding coupling)
Shaft Loading - Axial Radial	50 lb max
Weight	9.0 lb (excluding coupling)
Data Clock Rate	10.0 MHz max
Data Relevancy	27 µS
Sealing	IP50 (dust protected)
