Optical Encoders

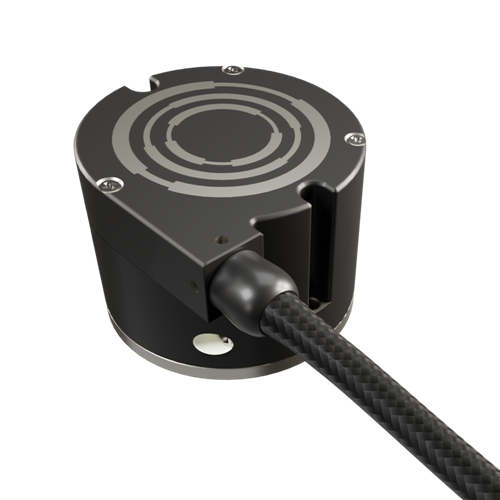

nanoSeries® SPACE Micro Kit Encoder

Product Specifications

General Parameters
Type	Absolute Kit Encoders
Interrogation Rate/Acquisition Time	100 to 1000 Hz
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-55°C to +90°C
Input Power	50 mA
Input Voltage	5.7 VDC
Vibration	20.7 grms
Shock	501 g’s
Operating Speed	1000 rpm
ESD (HBM)	8000 V
Low-Outgassing Design	1.0% TML 0.1% CVCM
Total Ionizing Dose	50 krad
Displacement Damage	> 2.4E11 n/cm2 (1 Mev)
MTBF	100000 hours
Full Revolution Accuracy	30 arcsec RMS
Resolution - Quanta	24 Bits
Resolution - ENOB	18 Bits
