Optical Encoders

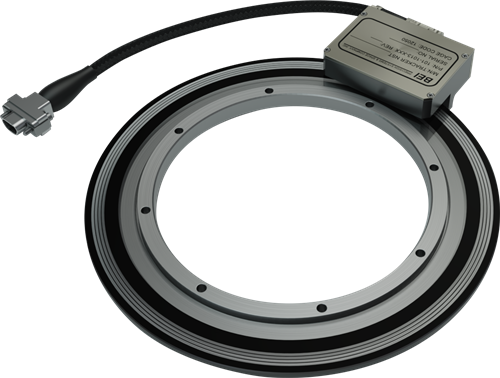

nanoSeries® TRACKER

Product Specifications

General Parameters
Type	Absolute Kit Encoders
Interrogation Rate/Acquisition Time	1kHz max/45.5 µsec typ (See note on Table 1)
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-55°C to +90°C
Input Power	+5 VDC ± 10% at 40 ma nominal
Vibration	20.7 grms from 10 to 2000 Hz per MIL-STD-202, Condition1, profile F
Shock	50g at 11ms half-sine pulse per MIL-STD-202, Method 213B, Test Condition A(4)
Slew Speed (Non-Operating)	5 rps max
Altitude	Vacuum-compatible (all materials < 1.0% TML and < 0.1% CVCM)
Relative Humidity	To 99% (avoid condensation)
Electromagnetic Compatibility	Per MIL-STD-461F: CE102: Conducted Emissions, Power Leads, 10kHz – 10MHz
ESD (HBM)	8kV
