Optical Encoders

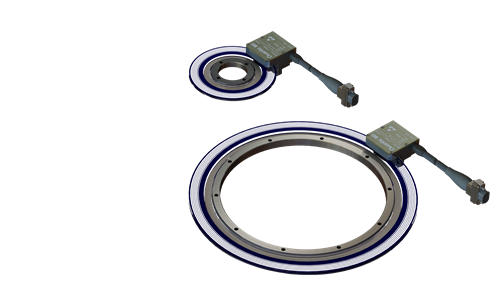

nanoSeries® TRACKER-Lite

Product Specifications

General Parameters
Type	Absolute Kit Encoders
Interrogation Rate/Acquisition Time	2kHz max/45.5 µsec typ (See note on Table 1)
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-55°C to +90°C
Input Power	4.5 to 5.7 VDC at
Vibration	29.28 grms per MIL-STD-202, TM 2014, Condition I, Profile H
Shock	50 g at 11 ms half-sine pulse per MIL-STD-202, Method 213B, Test Condition A⁴
Altitude	Vacuum-compatible (all materials < 1.0% TML and < 0.1% CVCM)
Relative Humidity	To 99% (avoid condensation)
ESD (HBM)	8 kV
